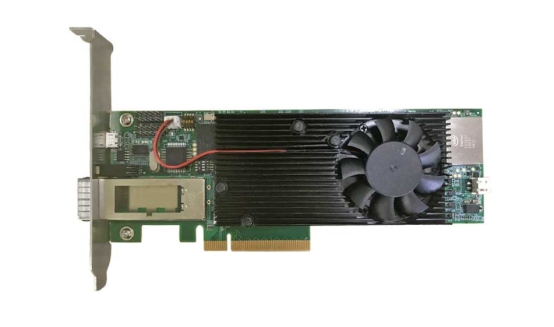

Arria10 加速卡
發(fā)布時間:2020-11-16

FPGA

· Intel Arria 10 GX FPGA(10AX115H3F34E2SG)

FPGA Configuration

· JTAG header for FPGA programming

· FPP (FPP x32) configuration via MAX V CPLD and CFI flash memory

Memory

· 128MB FLASH

· DDR4 SDRAM, up to 16 GB 2666MHz

Communication and Expansion

· PCI Express Gen3 x8 edge connector (includes PCIe drivers)

· 2x5 Timing expansion header

Others

· General user input / output:

o 4 LEDs

o 2 slide switches

· On-Board Clock

o 50MHz Oscillator

o 100MHz Oscillator

o Programmable Clock Generator

· System Monitor and Control

o Temperature sensor

o Fan control

· Power

o PCI Express edge connector power

· Mechanical Specification

o PCI Express half height and 1/2-length

JZ115T Board

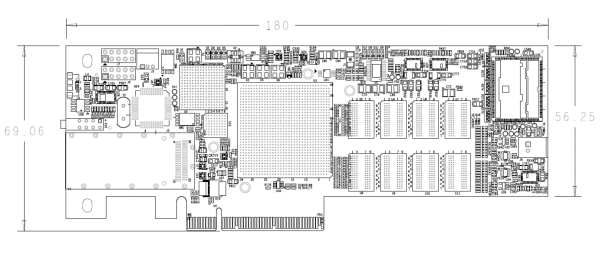

Board Size

· Board Size: 180 X 69 mm
